GEOGEN INC. is a supplier of
woven and nonwoven geosynthetic fabrics. We are located in Calgary,
Alberta, Canada providing quality products with the service and
knowledge of all geotextile applications. Our primary products are
woven and nonwoven geotextile, but also supply other products for
all types of applications including silt fence, sediment and
erosion control products, house wrap, sandbags, geogrids, FIBC
(Bulk Bags), BOPP and more of all weights and sizes. If you cannot
find what you are looking for, please contact us and we will do our
best to find you a solution.
GEOGEN INC. || © 2013
|
|
GEOGEN 200 |
GEOGEN 315 |
|||||||
Property |
Test Procedure (ASTM) |
Imperial |
Metric |
Imperial |
Metric |
|||||
Mechanical |
||||||||||
Grab Tensile (MD/CD) |
|
D4632 |
200 lbs |
890 N |
315 lbs |
1400 N |
||||
Elongation (%) (MD/CD) |
|
D4632 |
15 |
15 |
15 |
15 |
||||
Trapezoid Tear |
|
D4533 |
90 lbs |
400 N |
120 lbs |
533 N |
||||
CBR Puncture Strength |
|
D6241 |
700 lbs |
3120 N |
1000 lbs |
4450 N |
||||
Weight |
|
D5261 |
4 oz/yd2 |
145 g/m2 |
6.3 oz/yd2 |
214 g/m2 |
||||
Mullen Burst |
|
D3786 |
450 psi |
3103 kPa |
520 psi |
4019 kPa |
||||
Hydraulic |
||||||||||
AOS |
|
D4751 |
40 Sieve |
425 Microns |
40 Sieve |
425 Microns |
||||
Permittivity (sec-1) |
|
D4491 |
0.05 |
0.05 |
0.05 |
0.05 |
||||
Water Flow |
|
D4491 |
5 gpm/ft2 |
203 L/min/m2 |
4 gpm/ft2 |
163 L/min/m2 |
||||
Endurance |
||||||||||
UV Resistance (500 hrs) |
|
D4355 |
70 |
70 |
70 |
70 |
||||
Packaging |
||||||||||

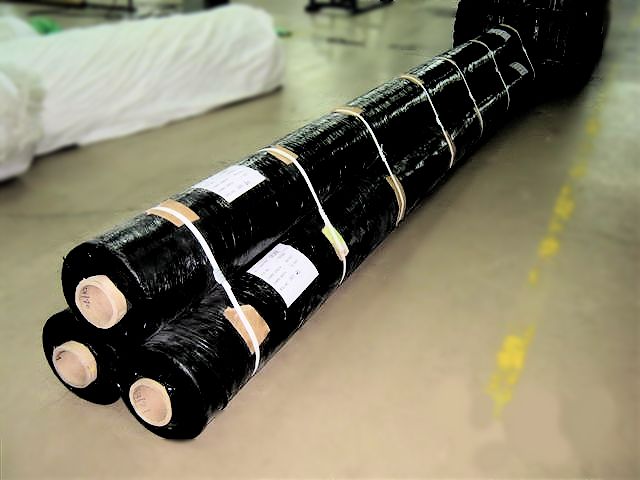

Roll Size (approx) |
|
|
15’ X 360’ |
4.6 m X 110 m |
15’ X 300’ |
4.6 m X 92 m |
||||
|
|
|
17.5’X309’ |
5.33 m X 94 m |
17.5’X309’ |
5.33 m X 94 m |
||||
Roll Weight |
|
|
175 lbs |
80 kg |
220 lbs |
100 kg |
||||
Woven
geotextiles help stabilize the ground, minimize rutting and prevent
intermixing of the aggregate with the soft soils below. If you plan
on constructing a road with areas of soft soil or poor subgrade, it
is always a good idea to strengthen the subbase and base to prolong
the life of the gravel surface or paved road. In some
instances it will also reduce the requirements for additional
aggregate. This geotextile can be used in many applications
including parking lots, roads and more. These textiles have been
used for decades in civil applications.

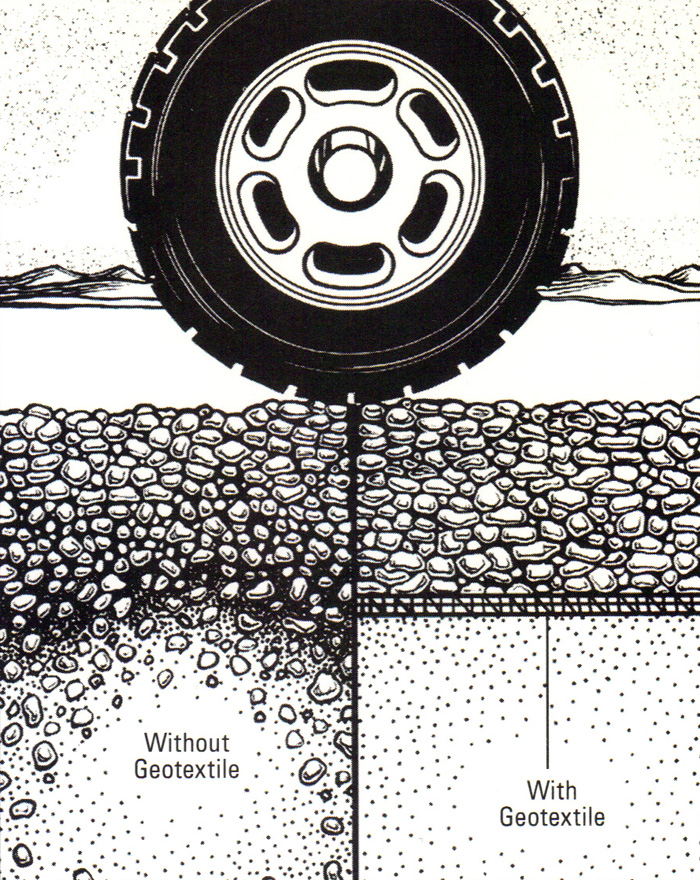

Woven
geotextiles are placed between the aggregate and the subgrade to
stabilize the soil, preserve the aggregate and reinforce the
surrounding soil.
This fabric is
used on heavy haul routes in the oil field, RV parking and used in
many railway applications.
All
products that we carry are manufactured on Sulzer Looms and edges
are tucked in to provide superior quality and strength. Materials
are not made on circular looms which typically lack in consistency
and poor quality. Come see our products. Each rolls are
individually tested and are approved are also approved by the
American Association of State Highway and Transportation Officials
(AASHTO - NTPEP). This fabric also meets Alberta Transporation
Specifications. Quality products with an unbeatable
price.
